3-phase hybrid inverter with 10 kW capacity, offering a choice of battery capacities starting at 10 kWh
The Anker SOLIX X1 10 kW is a powerful and modular 3-phase home battery for households and business applications with higher energy needs. This configuration combines a 10 kW three-phase hybrid inverter with a battery capacity of your choice ranging from 10 kWh to 30 kWh. This allows the system to be precisely tailored to energy consumption, the solar panel installation, and the desired amount of energy storage.

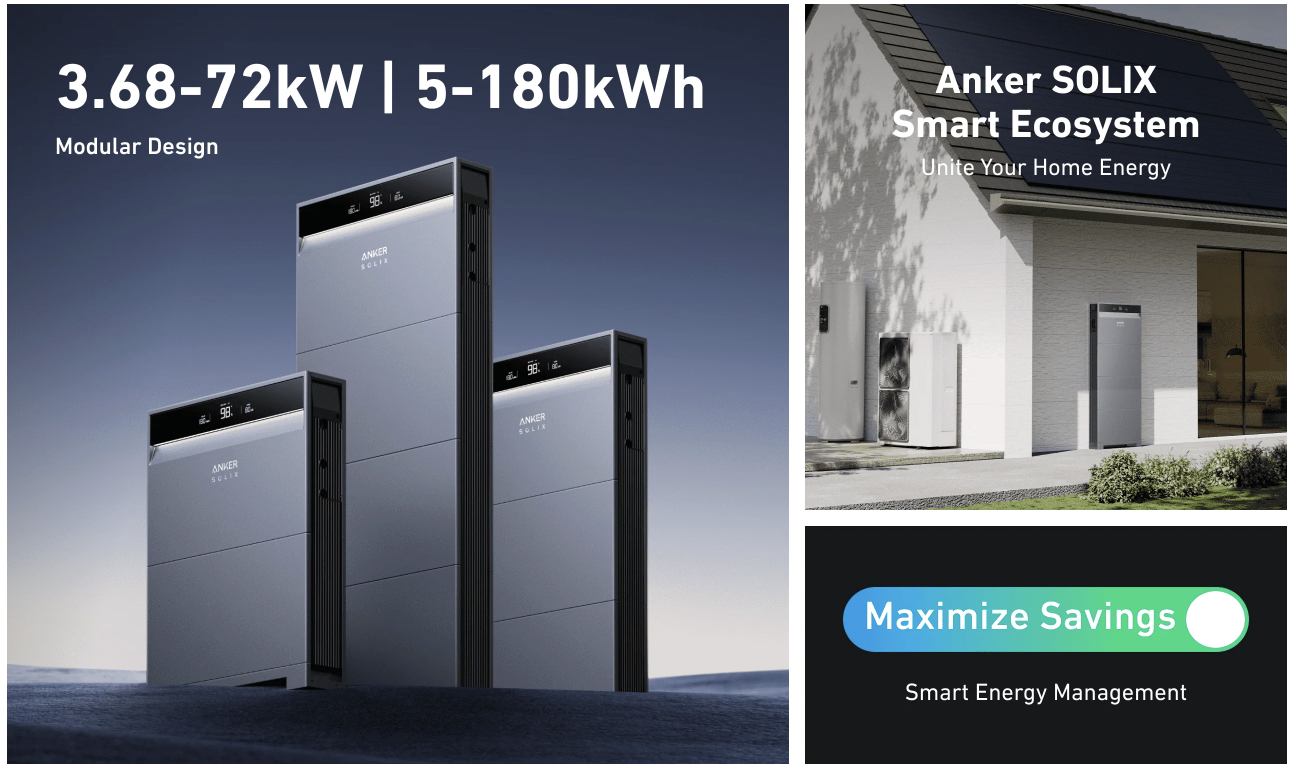

The Anker X1 uses modular 5-kWh battery modules. Within this configuration, you can choose a battery capacity of 10, 15, 20, 25, or 30 kWh (up to a maximum of 180 kWh). A smaller configuration can also be expanded later as energy consumption increases.
With an inverter capacity of 10 kW, the Anker SOLIX X1 is particularly well-suited for larger homes with solar panels, a heat pump, an electric car, or other high-power electrical appliances. Excess solar energy can be stored during the day and used later, thereby increasing the use of self-generated solar power and reducing the need to draw electricity from the grid.
The Anker SOLIX X1 uses modular 5 kWh battery modules. The desired battery capacity can be selected via the menu:
10 kWh battery capacity
15 kWh battery capacity
20 kWh battery capacity
25 kWh battery capacity
30 kWh battery capacity
Need more than 30 kWh? The Anker X1 can be scaled up to create significantly larger energy storage systems. For configurations exceeding 30 kWh, you can request a quote at info@offgridpowerstation.com.
Excess solar energy can be stored for use in the evening, at night, or during times when the solar panels aren’t generating enough power.
A heat pump can significantly increase annual electricity consumption. The combination of a 10 kW inverter and scalable battery capacity makes the Anker X1 an attractive option for all-electric homes.
For households with an electric car, a larger battery capacity may be beneficial. Solar energy can be stored and utilized more efficiently as part of the overall energy supply.
By storing excess solar power, the amount of electricity fed back into the public grid can be significantly reduced.
The home battery can store energy during off-peak hours and make it available during peak hours.
With a suitable backup configuration, the Anker X1 can supply stored energy to the home or selected electrical circuits during a power outage.
Its scalable design and high capacity also make the Anker X1 an attractive option for small businesses, offices, and other commercial locations with solar panels and higher electricity consumption.
Brand: Anker SOLIX
Model: X1
System Type: 3-phase hybrid energy storage system
Inverter capacity: 10 kW
Battery capacity per module: 5 kWh
Battery capacity for this product configuration: 10 to 30 kWh
Available configurations: 10 / 15 / 20 / 25 / 30 kWh
Scalability: Larger configurations are possible
Maximum PV input power: 10 kW
MPPT voltage range: 140 to 950 V DC
Maximum PV input voltage: 1000 V DC
Suitable for solar panels: Yes
3-phase: Yes
Backup / off-grid capability: Yes, depending on the system configuration
Monitoring: Anker App
Communication: Wi-Fi / Ethernet / RS485
Noise level: Starting at approximately 30 dB
Application: Residential and commercial
Warranty: 10 years
For larger homes, businesses, or situations with very high energy consumption, battery storage capacity exceeding 30 kWh may be desirable. The modular Anker X1 platform offers options for significantly larger energy storage systems.
For an Anker SOLIX X1 configuration with more than 30 kWh of battery capacity, a custom system will be assembled.
For pricing information and a suitable configuration, please request a quote at info@offgridpowerstation.com.
| Desired battery capacity: | Anker X1 10 kW – 10 kWh battery capacity, Anker X1 10 kW – 15 kWh battery capacity, Anker X1 10 kW – 20 kWh battery capacity, Anker X1 10 kW – 25 kWh battery capacity, Anker X1 10 kW – 30 kWh battery capacity |
|---|
Not sure whether a 10, 15, 20, 25, or 30 kWh battery capacity best suits your energy consumption and solar panel system? The specialists at Off Grid Power Station can help you determine the right Anker SOLIX X1 configuration.
Email info@offgridpowerstation.com or call (+31) 73 8517 811.
