Bluetti AC500 Expandable Power Station

Bluetti AC500

The Bluetti AC500 is a Bluetti Power station without an integrated battery, which means that it is only usable in combination with at least one B300(s) battery module (not included). You can then connect up to six battery modules to one AC500, achieving a maximum of 18,432Wh. With this amount of capacity, you can power household appliances for days. Think of laptops, fans, refrigerator, coffee maker, television, air conditioning, etc.

Features of the Bluetti AC500

Impressive power: the Bluetti AC500 has 5,000W continuous power and 10,000W peak power to meet all your needs. With this, the device can power all your household appliances without any problems, such as tumble dryers, refrigerators, coffee makers and much more.
Expandable capacity: on each AC500 you can connect up to six B300s extra batteries for a total capacity of 18,432Wh. This makes it a solid power station to keep your home essentials running for days or weeks. With enough solar panels, you can also become self-sufficient in terms of electricity.
LiFePO4: BLUETTI uses a safe and reliable LiFePO4 battery for a long lifespan and more than 3,500 charge cycles at 80% of its original capacity. Compared with the lithium-ion battery that most power stations, the LiFePO4 battery type offers optimal performance, you can use it for more than 10 years.
24/7 UPS: thanks to the UPS system (Uninterrupted Power Supply), you don’t have to worry about data loss or hardware damage in the event of a power outage, as it can automatically detect the power outage the moment it occurs and provide power supply within 20 ms. This is very useful if you live in an area where the power goes out frequently.
BLUETTI App: with the BLUETTI App, you can remotely control the AC500 at home at any time using just a mobile phone. It’s easy and convenient to turn the AC500 on and off, check the SOC (state of charge), and update the firmware to the latest version from the palm of your hand.

Bluetti AC500 charging

Charging this “energy monster” is not a time-consuming process. The AC500 can be charged via the wall outlet, solar panels or generator. Connect the AC500 to the socket and solar panels at the same time and you can connect the device with a max. 8,000W input charging. Charging time for AC500 with two B300S:

3,000W MPPT solar charging: ≈ 2.5 hours
5,000W AC charging: ≈ 1.7 hours
8,000W AC+PV dual charging: ≈ 1.2 hours

Maximum 8000W input, AC+Solar panels

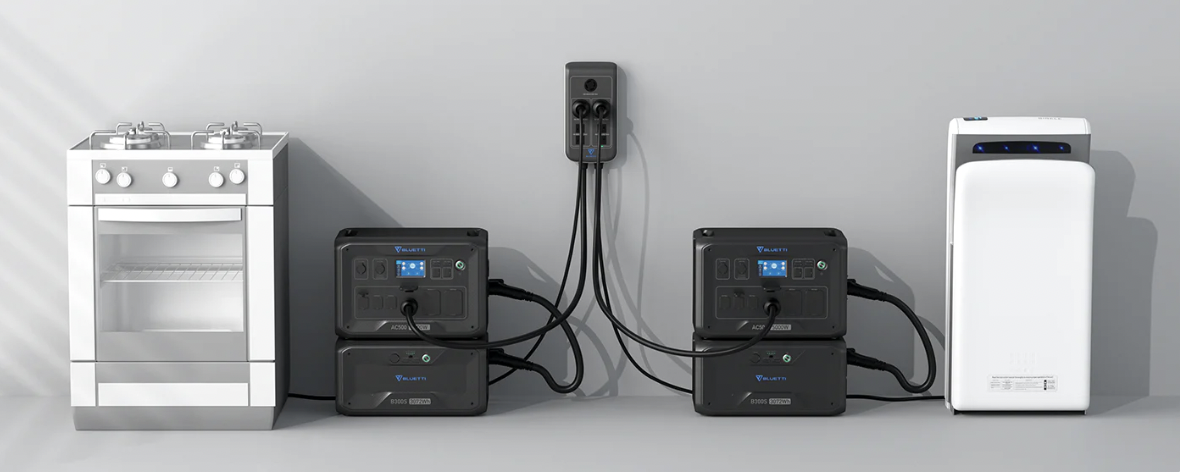

Connect two Bluetti AC500 together (Split Phase Bonding).

Split Phase Bonding (sold separately) can connect two AC500s for dual performance (requires Fusion Box Pro, sold separately). On one AC500 you can connect 6 B300S batteries with a total capacity of 18,432Wh. You can connect a maximum of 12 B300S units to two AC500 units. This makes for an impressive capacity of 36,864Wh. This allows you to power the entire house and therefore you are less dependent on the grid.

Bluetti AC500 Vs AC300

Like the AC300, the new model is also 100% modular, meaning there’s no battery under the hood. You have a special B300S battery pack to attach to the device for (extra) power. You can use up to six additional 3072Wh batteries to bring the storage capacity to a high range. So, AC500 can be an ideal power backup in case of power failure or outage.

Differences between the AC300 and the AC500

Bluetti AC500 Expandable Power Station Buy

When you purchase a Bluetti AC500, you will receive the following products:

• Bluetti AC500 – EU Version
• 15A AC charging cable
• Solar panel charging cable (MC4 to Aviation cable)
• Car charging cable (MC4 to Cigarette Lighter)
• User Manual
• 2 year warranty

Optional: B300S

Additional information

AC OUTPUTS:
3 x 230V/20A Outputs
1 x 230V/30A L14-30
1 x 230V/30A TT-30
1 x 230V/50A NEMA14-50

Inverter Type: Pure Sine Wave
Surge Power: 10,000W

USB-C Port: 2 x 100W Max.
USB-A Port: 2 x 5V/3A USB-A, 2 x 18W USB-A
12V* DC Outputs: 1 x 12V/30A (Exhaust RV), 1 x 24V/10A (Auto Output)
Wireless Charging Station: 2 x 15W Max (for each)

INPUT
AC Input: 5,000W Max.
Solar Input: 3,000W Max., VOC 12-150VDC, 12A
Car Input: 12/24V Cigarette Lighter

APP Control: WiFi and Bluetooth

Weight: 30 kg

Dimensions (LxWxD): 20.5 x 12.8 x 14.1in ( 52 x 32.5 x 35.8cm)

Operating temperature: -20-40℃
Storage temperature: -20-40℃
