Original price was: € 12.999,00.€ 11.499,00Current price is: € 11.499,00.
The 3-phase Victron-Voltsmile ESS package 15 kVA – 30 kWh is a complete and professional energy storage system for homes, businesses and technical installations. With three Victron MultiPlus-II inverters and six Voltsmile LiFePO₄ batteries, this system offers powerful energy storage, reliable emergency power and smart peak-shaving. With its modular design and integrated Victron monitoring, the system is easy to install and ideal for efficient energy management with solar panels and dynamic energy tariffs. ⚡🔋
In stock (can be backordered)
Brief description
The 3-phase Victron-Voltsmile ESS package 15 kVA – 30 kWh is a complete and professional energy storage system for homes, businesses and technical installations. With three Victron MultiPlus-II inverters and six Voltsmile LiFePO₄ batteries, this system offers powerful energy storage, reliable emergency power and smart peak-shaving. With its modular design and integrated Victron monitoring, the system is easy to install and ideal for efficient energy management with solar panels and dynamic energy tariffs. ⚡🔋
Product Description
The three-phase Victron-Voltsmile ESS package 15 kVA – 30 kWh is a powerful, modular and professional energy storage system specifically designed for commercial buildings, technical installations, homes with high energy requirements and off-grid applications. The system combines three Victron MultiPlus-II 48/5000 inverters with six Voltsmile V10 RPC LiFePO₄ battery modules in a 22U battery cabinet. Together they provide a complete solution for energy storage, smart energy management, emergency power supply and peak-shaving.
The three Victron MultiPlus-II inverters form the heart of the system and provide a stable 3-phase power supply. Together they provide a total continuous power of 12 kW and a system output of 15 kVA. Thanks to built-in battery chargers, smart energy regulation and fast switching to emergency power within 20 milliseconds, the system can switch seamlessly between grid, battery and solar power. As a result, critical facilities always remain operational, even during power outages.
A key advantage of this system is its integrated peak-shaving functionality. This allows the system to supply additional power from the battery during peak loads. This allows, for example, a standard 3×25 A grid connection to effectively function as a virtual connection of approximately 3×40 A. This prevents expensive grid reinforcements and reduces fixed grid costs, while allowing heavy equipment or machinery to start up without problems.
The system features 30.72 kWh of battery storage thanks to six Voltsmile V10 RPC LiFePO₄ modules. These batteries are designed for quick installation via a plug-and-play rack system with integrated bus bars. The LiFePO₄ cells offer more than 6,000 charging cycles and a service life of over 10 years, while the integrated BMS ensures optimal safety, temperature control and communication with the Victron system.
The Cerbo GX and the GX Touch 50 display are the central brain of the system. This monitors and controls all energy flows. Through the display or Victron Remote Management you get real-time insight into battery status, energy consumption, PV yield and grid load. The system can also be expanded with Dynamic ESS, which automatically charges when power is cheap and discharges when prices are high.
The Victron ESS platform makes integration with existing solar panel installations easy. Both AC-coupled PV inverters and DC-coupled MPPT controllers can be used. Solar power production remains possible during power outages, with the MultiPlus-II preventing battery overcharging via frequency control.
Its modular design makes it easily expandable and suitable for a variety of applications, from residential energy storage to professional installations for business and industrial applications.
The Victron-Voltsmile 15 kVA – 30 kWh ESS system thus offers a complete, safe and future-proof solution for modern energy storage, with maximum control over energy consumption, costs and energy security. ⚡🔋
System contents and scope of delivery
The 3-phase Victron-Voltsmile 15 kVA / 30 kWh system is delivered as a complete, modular package that is ready for installation. This kit includes all main components, DC wiring, fuses and communication parts for a fully functional ESS system.

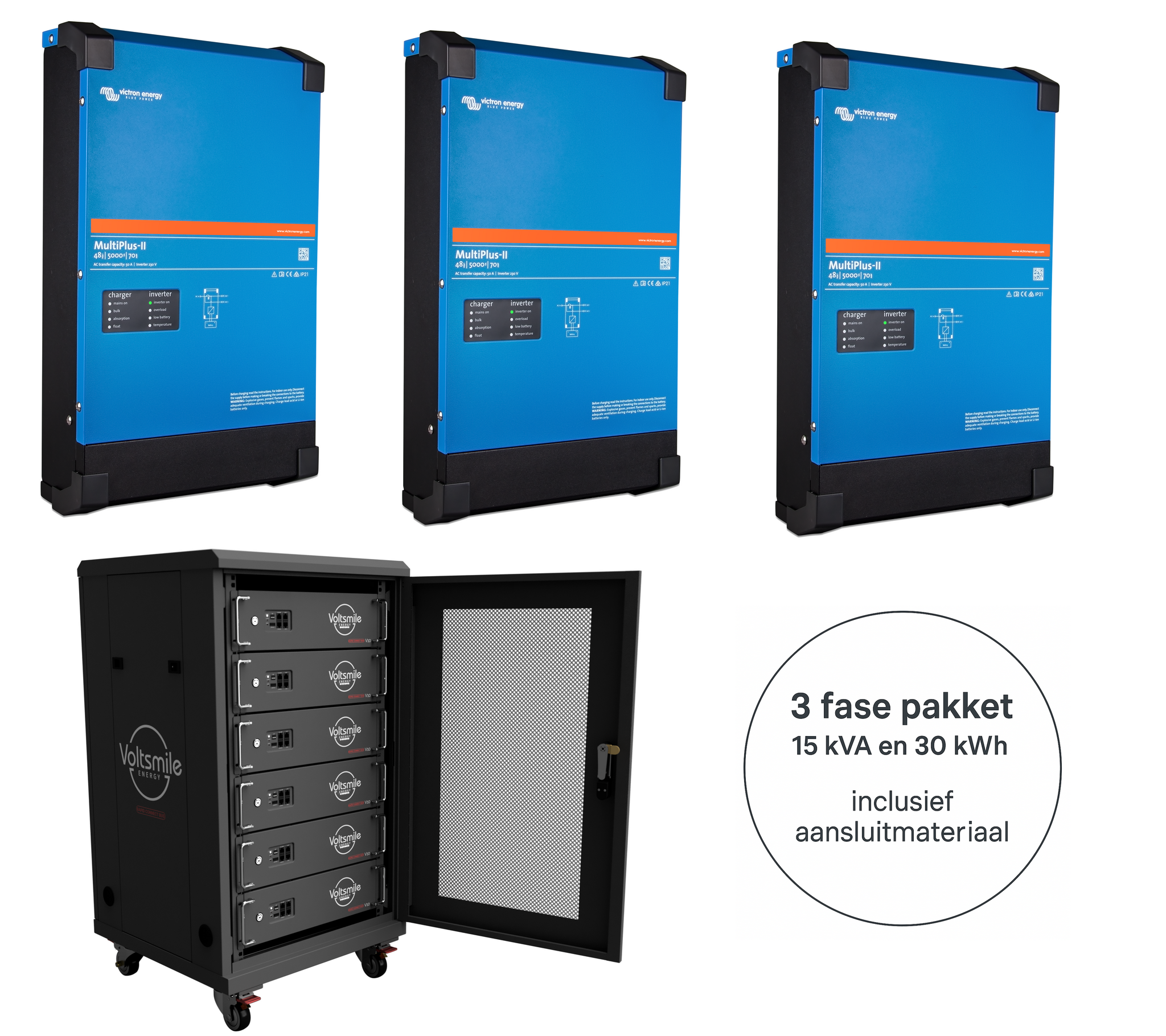

The package is composed of 3× Victron MultiPlus-II 48/5000 and 6× Voltsmile V10 RPC battery modules distributed in 1× 22U RPC cabinet. Together, these components form a fully integrated power solution with 15 kVA/ 12 kwh of power and 30.72 kWh of storage capacity.
Included in the package
– 3× Victron MultiPlus-II 48/5000/70-50 (total 15 kVA)
– 6× Voltsmile V10 RPC 51.2 V / 5.12 kWh (total 30.72 kWh)
– 1× Voltsmile RPC 22U Battery Cabinet (room for 6 modules per rack)
– 1× Voltsmile RPC cable set (2.5 m) for interfacing RPC cabinets with the Lynx DC bus
– 1× Victron Lynx Distributor – modular DC distribution block with fuse holders
– 1 inputs for RPC cable sets cabinet
– 3 inputs per MultiPlus unit
– 6× 50 mm² battery cable black, double insulated (DC connection per MultiPlus → Lynx)
– 6× 50 mm² battery cable red, double insulated (DC connection per MultiPlus → Lynx)
– 12× Cable lugs Intercable 50 mm² M8 (for mounting on MultiPlus and Lynx)
– 3× Mega-fuse 70 V 150 A per MultiPlus-II (for mounting in Lynx)
– 1× Mega-fuse 70 V 350 A per RPC cabinet (for mounting in Lynx)
– 1× Victron Cerbo GX Energy Management Controller
– 1× GX Touch 50 local control display with wall mount
– 3× 1 m UTP cable for VE.Bus communication between the MultiPlus units and Cerbo GX. Communication cables for mutual VE.bus communication of Multi units. From L3 to L2, from L2 to L1 and from L1 to Cerbo GX.
– 1× Victron VM-3P75CT 3-phase energy meter (for import/export measurement on the main connection)
– 1× CAN bus cable for BMS communication between Voltsmile and Cerbo GX
Not included in the package
The system is supplied without AC installation material, such as:
– Earth leakage circuit breakers, circuit breakers and mains contactor
– Cable ducts, end caps and distribution material
– AC connection cables for the MultiPlus units (these are project dependent and are usually custom installed on site)
In addition, tools for crimping cable eyes are not included. However, we at Venema Technical Company supply several professional crimping pliers suitable for the 50 mm² Intercable cable eyes from this package.
