The 3-phase Victron-Voltsmile ESS package 24 kVA – 60 kWh is a powerful and professional energy storage system for businesses, technical facilities and larger homes. With three Victron MultiPlus-II 48/8000 inverters and twelve Voltsmile LiFePO₄ batteries, this system offers high power, reliable emergency power and advanced peak-shaving. Smart Victron monitoring and modular design make the system ideal for efficient power management with solar panels, dynamic energy tariffs and off-grid applications. ⚡🔋
In stock (can be backordered)
The 3-phase Victron-Voltsmile ESS package 24 kVA – 60 kWh is a powerful, modular and professional energy storage system specifically designed for commercial buildings, technical installations, homes with very high energy requirements and off-grid applications. The system combines three Victron MultiPlus-II 48/8000 inverters with twelve Voltsmile V10 RPC LiFePO₄ battery modules distributed in two 22U battery cabinets. Together, they provide a complete solution for energy storage, smart energy management, emergency power supply and peak-shaving.
The three Victron MultiPlus-II inverters form the heart of the system and provide a stable 3-phase power supply. Together they provide a total continuous power of 19.2 kW and a system output of 24 kVA. Thanks to high-performance battery chargers, intelligent energy control and fast switching to emergency power within 20 milliseconds, the system can switch seamlessly between grid, battery and solar power. This keeps critical facilities operational at all times, even during power outages.
A key advantage of this system is its integrated peak-shaving functionality. This allows the system to supply additional power from the battery during peak loads. This allows, for example, a standard 3×25 A grid connection to function effectively as a virtual connection of about 3×50 A. This prevents expensive grid reinforcements, reduces fixed grid costs and allows heavy machines or installations to start up without problems.
The system features 60.72 kWh of battery storage thanks to twelve Voltsmile V10 RPC LiFePO₄ modules. These batteries are designed for quick installation via a plug-and-play rack system with integrated bus bars. The LiFePO₄ cells offer more than 6,000 charging cycles and a service life of over 10 years, while the integrated BMS ensures optimal safety, temperature control and communication with the Victron system.
The Cerbo GX and the GX Touch 50 display are the central brain of the system. This monitors and controls all energy flows. Through the display or Victron Remote Management you get real-time insight into battery status, energy consumption, PV yield and grid load. The system can also be expanded with Dynamic ESS, which automatically charges when power is cheap and discharges when prices are high.
The Victron ESS platform makes integration with existing solar panel installations easy. Both AC-coupled PV inverters and DC-coupled MPPT controllers can be used. Solar power production remains possible during power outages, with the MultiPlus-II preventing battery overcharging via frequency control.
Its modular design makes it easily expandable and suitable for a variety of applications, from residential energy storage to professional installations for business and industrial applications.
The Victron-Voltsmile 24 kVA – 60 kWh ESS system thus offers a complete, powerful and future-proof solution for modern energy storage, with maximum control over energy consumption, costs and energy security. ⚡🔋
The 3-phase Victron-Voltsmile 24 kVA / 60 kWh ESS system is supplied as a complete, modular package that is ready for installation immediately. The kit includes all main components, DC cabling, fuses and communication parts required for a fully functioning energy storage system.

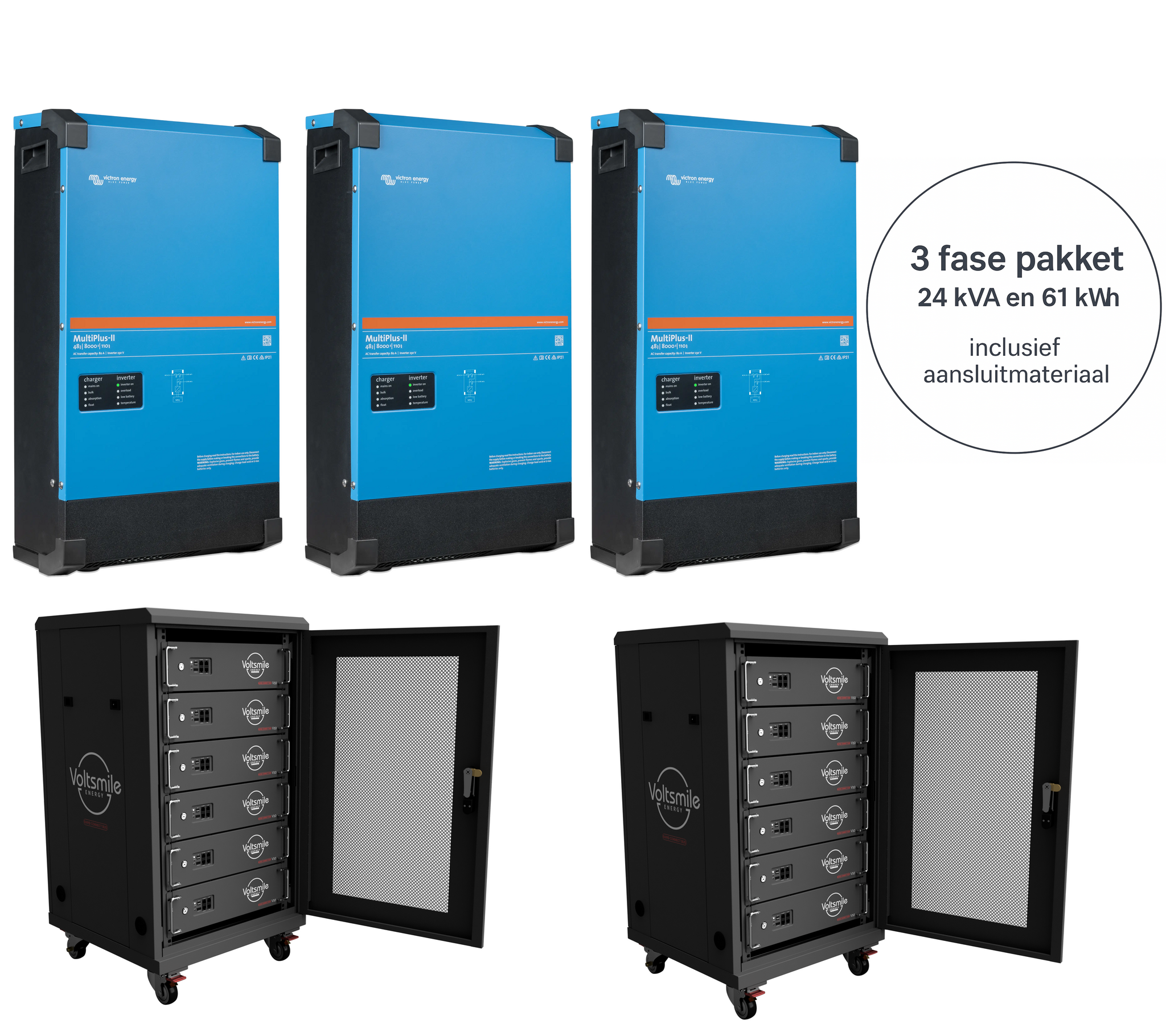

The package consists of 3 Victron MultiPlus-II 48/8000 inverters and 12 Voltsmile V10 RPC LiFePO₄ battery modules distributed in 2× 22U RPC battery cabinets. Together, these components form a powerful and fully integrated power solution with 24 kVA of power and 61.2 kWh of storage capacity.
– 3× Victron MultiPlus-II 48/8000/110-100 (total 24 kVA)
– 12× Voltsmile V10 RPC 51.2 V / 5.12 kWh (total 61.22 kWh)
– 2× Voltsmile RPC 22U Battery Cabinet (room for 6 modules per rack)
– 2× Voltsmile RPC cable set (2.5 m) for connecting the RPC cabinets to the Lynx DC bus
– 2× Victron Lynx Distributor – modular DC distribution block with fuse holders
– 2 inputs for RPC cable sets per cabinet
– 3 inputs per MultiPlus unit
– 6× 70 mm² battery cable black, double insulated (DC connection MultiPlus → Lynx)
– 6× 70 mm² battery cable red, double insulated (DC connection MultiPlus → Lynx)
– 12× Intercable cable lugs 70 mm² M8 (for mounting on MultiPlus and Lynx)
– 3× Mega-fuse 70 V 225 A per MultiPlus-II (mounting in Lynx Distributor)
– 2× Mega-fuse 70 V 350 A per RPC cabinet (mounting in Lynx Distributor)
– 1× Victron Cerbo GX Energy Management Controller
– 1× Victron GX Touch 50 local control display with wall mount
– 3× UTP cable (1 m) for VE.Bus communication between MultiPlus units and Cerbo GX
– communication from L3 → L2
– L2 → L1
– L1 → Cerbo GX
– 1× Victron VM-3P75CT 3-phase energy meter (for import/export measurement on main connection)
– 1× CAN bus cable for BMS communication between Voltsmile batteries and Cerbo GX
The system is supplied without AC installation equipment. The following parts are usually provided on site depending on the project:
– Earth leakage circuit breakers and circuit breakers
– Mains circuit breaker or main switch
– Cable ducts, distributors and end caps
– AC connection cables for the MultiPlus units
In addition, tools for tightening cable eyes are not included.
