Original price was: € 34.450,00.€ 31.999,00Current price is: € 31.999,00.
The 3-phase Victron-Voltsmile ESS system 36 kW – 92 kWh is a powerful energy storage system for business and industrial applications. With three Victron MultiPlus-II 48/15000 inverters and 18 Voltsmile LiFePO₄ batteries, the system offers high power, reliable emergency power and smart peak-shaving. Ideal for storing solar energy, capturing peak consumption and reducing grid costs. ⚡🔋
In stock (can be backordered)
The 3-phase Victron-Voltsmile ESS package 36 kW – 92 kWh is a powerful, modular and professional energy storage system specifically designed for commercial buildings, industrial plants, agricultural applications and off-grid energy supply. The system combines three Victron MultiPlus-II 48/15000 inverters with 18 Voltsmile V10 RPC LiFePO₄ battery modules distributed in three 22U battery cabinets. Together they form a complete solution for energy storage, smart energy management, emergency power supply and peak-shaving.
The three Victron MultiPlus-II inverters form the heart of the system and provide a stable 3-phase power supply. Each unit delivers 12 kW of continuous power, allowing the system to deliver a total of 36 kW of continuous power and 45 kVA of system power. This makes it possible to control heavy machinery, heat pumps, loading infrastructure or technical installations without problems. Thanks to the fast switchover to emergency power within 20 milliseconds, the power supply remains active even in the event of a complete grid failure.
A key advantage of this system is its integrated peak-shaving functionality. This allows the system to supply additional power from the batteries when demand temporarily peaks. This allows, for example, a standard 3×25 A grid connection to function in practice as a virtual connection of about 3×75 A. This avoids costly grid reinforcements and makes it possible to start heavy consumers without overloading the grid.
The system features 92.16 kWh of battery storage thanks to 18 Voltsmile V10 RPC LiFePO₄ modules. These batteries are designed for quick installation via a plug-and-play rack system with integrated bus bars, largely eliminating loose DC wiring. The LiFePO₄ cells offer more than 6,000 charge cycles and a service life of over 10 years, while the integrated BMS provides temperature control, protection and communication with the Victron system.
The Cerbo GX and the GX Touch 50 display are the central brain of the system. This monitors and controls all energy flows. Through the display or Victron Remote Management you get real-time insight into battery status, energy consumption per phase, PV yield and grid load. Moreover, the system can be expanded with Dynamic ESS, allowing automatic charging when power is cheap and discharging when prices are high.
The Victron ESS platform makes integration with existing solar panel installations easy. Both AC-coupled PV inverters and DC-coupled MPPT controllers can be used. In case of power failure, solar power production remains possible as the MultiPlus-II prevents battery overcharging via frequency control.
Its modular design makes it easily expandable and suitable for a variety of applications, from energy storage for businesses and industrial plants to large off-grid systems.
The Victron-Voltsmile 36 kW – 92 kWh ESS system thus offers a complete, powerful and future-proof solution for modern energy storage, with maximum control over energy consumption, costs and energy security.
The 3-phase Victron-Voltsmile 45 kVA / 92 kWh system is supplied as a complete, modular package that is ready for installation. The kit includes all main components, DC cabling, fuses and communication parts required for a fully functioning ESS system.

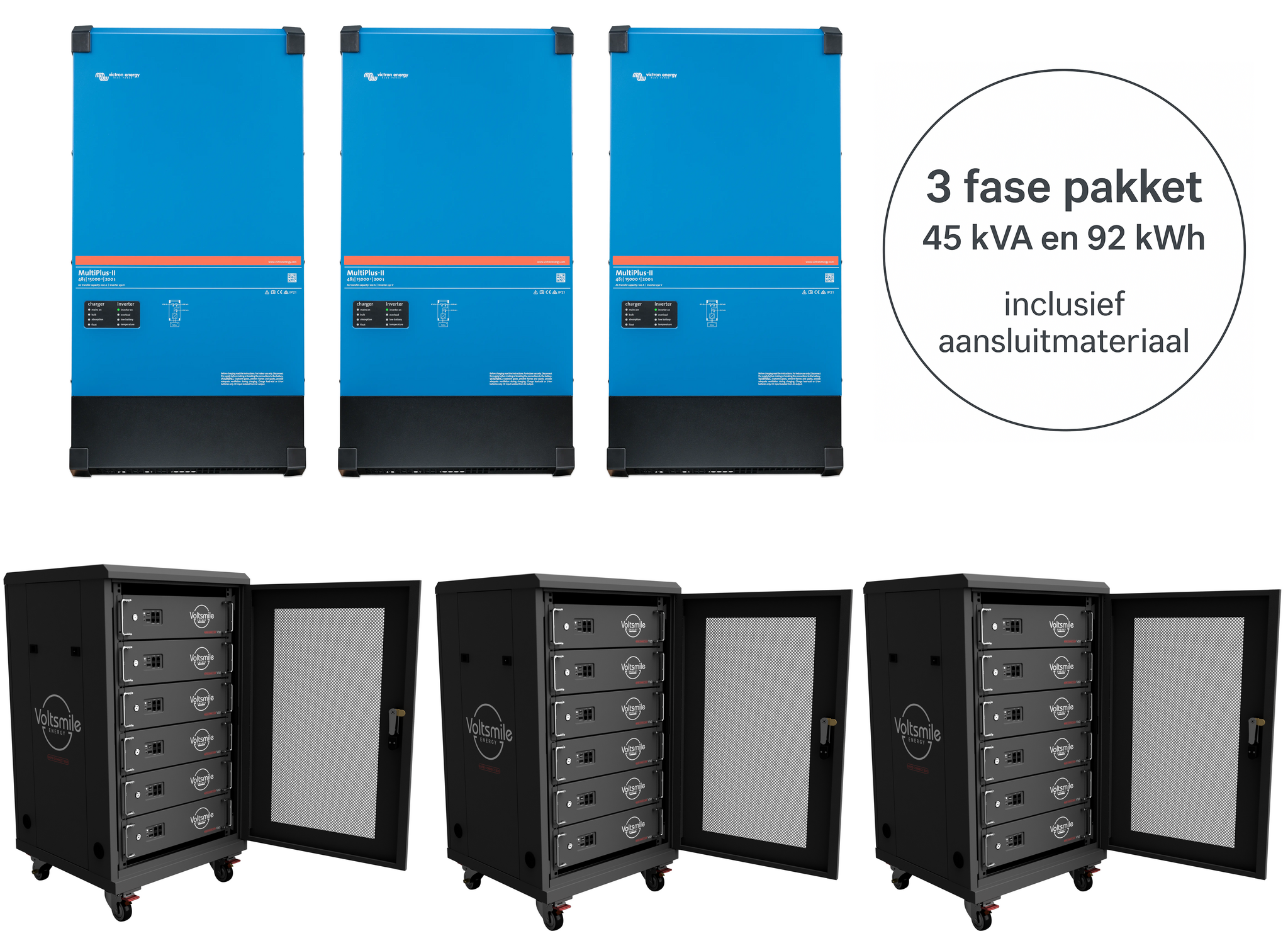

The package consists of 3 Victron MultiPlus-II 48/15000 inverters and 18 Voltsmile V10 RPC battery modules distributed in 3 RPC 22U battery cabinets. Together, these components form a fully integrated power solution with 45 kVA of system power and 92.16 kWh of storage capacity.
– 3× Victron MultiPlus-II 48/15000/200-100 (total 45 kVA / 36 kW)
– 18× Voltsmile V10 RPC 51.2 V / 5.12 kWh (total 92.16 kWh)
– 3× Voltsmile RPC 22U Battery Cabinet (room for 6 modules per rack)
– 3× Voltsmile RPC cable set (2.5 m) for connecting the RPC cabinets to the Lynx DC bus
– 2× Victron Lynx Distributor – modular DC distribution block with fuse holders
– 3 inputs for RPC cable sets per cabinet
– 3 inputs per MultiPlus unit
– 6× 120 mm² battery cable black, double insulated (DC connection MultiPlus → Lynx)
– 6× 120 mm² battery cable red, double insulated (DC connection MultiPlus → Lynx)
– 12× Intercable cable lugs 120 mm² M8 (for mounting on MultiPlus and Lynx)
– 3× Mega-fuse 70 V 350 A per MultiPlus-II (mounting in Lynx Distributor)
– 3× Mega-fuse 70 V 350 A per RPC cabinet (mounting in Lynx Distributor)
– 1× Victron Cerbo GX Energy Management Controller
– 1× GX Touch 50 local control display with wall mount
– 3× UTP cable (1 m) for VE.Bus communication between the MultiPlus units and Cerbo GX
– communication from L3 to L2
– L2 to L1
– L1 to Cerbo GX
– 1× Victron VM-3P75CT 3-phase energy meter (for import and export measurement on main connection)
– 1× CAN bus cable for BMS communication between Voltsmile and Cerbo GX
The system is supplied without AC installation equipment. The following parts are usually provided on site depending on the project:
– circuit breakers and circuit breakers
– mains switch or main switch
– cable ducts, end caps and distribution material
– AC connection cables for the MultiPlus units
In addition, tools for crimping cable eyes are not included. Suitable crimping pliers are required to process the 120 mm² Intercable cable eyes.
