Instagrid One Max Power Station

The Instagrid ONE Max with 2.1kWh battery capacity is a groundbreaking 400V mobile power current solution. With a continuous power of 3,600W and a peak power of up to 18,000W , this power station is designed for professional use on construction sites, in industry, events and wherever temporary, powerful power is needed. No emissions, no noise – just pure, sustainable energy from a robust battery.

Advantages of the Instagrid ONE Max 400V Power Station

400V power current: Pair three Instagrid One Max units with the Instagrid Link and create a reliable 3-phase output (400V). This allows you to effortlessly connect heavy machinery, industrial tools and commercial installations — wherever you need reliable power current.
Mobile and robust: Weighs only 20kg and is designed for intensive outdoor use. IP54 rating makes it resistant to dust, rain, and harsh working conditions.
Impressive Power: With an output of 3,600W (continuous) and up to 18,000W peak power (1 minut), the ONE Max can easily power construction equipment, welding machines or festival equipment.
Completely emission-free: Ideal for indoor work, urban construction sites and events where no emissions or noise (< 10dB(A)) is desired – a sustainable alternative to diesel generators.Plug & play ease of use: Easy connection via 400V 16A CEE connection, without installation. Deployable within seconds.
Fast charging time: Fast charge the ONE Max via mains power in less than 3h.
Smart energy management: Advanced battery technology with monitoring ensures safe, efficient and long-term use.

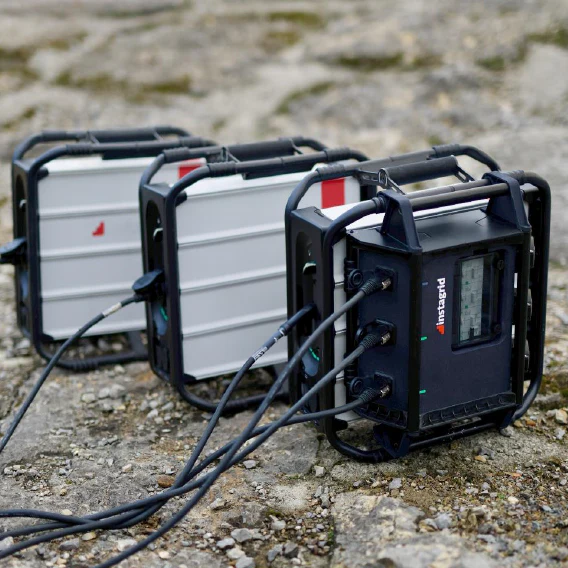

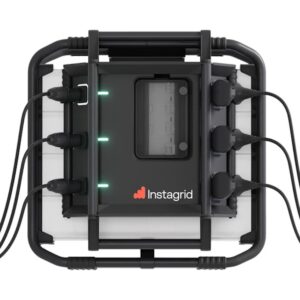

NSTAGRID LINK: Simply connect the Instagrid LINK to the Instagrid One and significantly increase your energy capacity. By linking up to three Instagrid One units, you can achieve a rated power of no less than 6.3 kW. This allows you to easily add or remove additional units without interruption, ensuring maximum flexibility in power management.

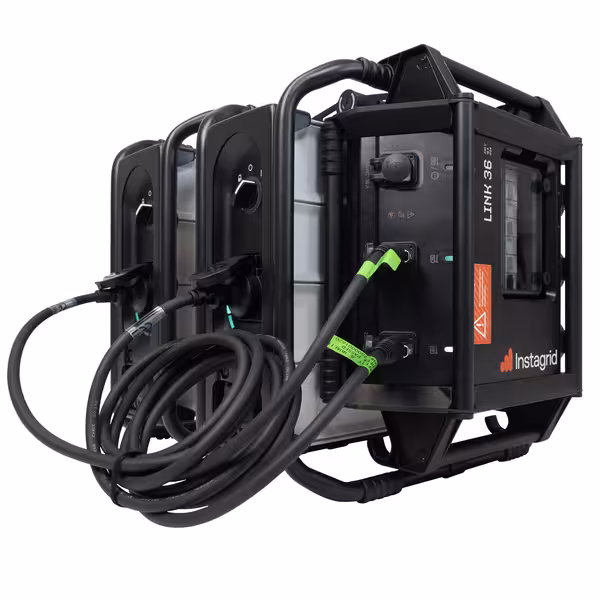

INSTAGRID LINK WITH 3X MAX ONE

Dust-free and splash-proof for safe working conditions: The Instagrid MAX ONE is dust-free and splash-proof, ideal for use in various conditions. This ensures a safe and reliable power supply, even in challenging working environments.

Durability and security: With a 4-year warranty, the Instagrid MAX ONE not only offers innovative portable power, but also peace of mind and reliability. Users can operate with confidence knowing that their investment is backed by a robust warranty.

The situations in which the Instagrid ONE Max excels

Construction and installation: For use with power tools in locations without a mains connection – quiet, clean and ready for immediate use.
Events and festivals: Power power equipment such as lighting, sound systems and catering equipment without a noisy generator.
Emergency power and emergency services: Provide direct, reliable power in the event of a fault or disaster – with zero emissions and no waiting time.
Interior and renovation: Use power safely indoors, without CO₂ emissions or ventilation problems.

Applications in various sectors:

• Construction tools:
  • Industrial Vacuum Cleaner 1,200 W: ~ 105 min runtime
  • Rotary hammer 2,200 W: ~ 7.5 tons of concrete slabs (150 mm) demolished
  • Diamond drill bit 3,300 W: ~ 32 holes (150 mm deep, Ø 150 mm drill) in concrete
  • Arc welding machine: up to 89 electrodes
• Catering equipment:
  • 2 Group Espresso Machine 2,800 W: ~ 120 brewed espresso cups
  • Food truck: ~4 hours (freezer, espresso machine, lighting)
• Film and Event Equipment:
  • Arri Skypanel LED Soft Light 420 W (sky panel): ~ 5 hours (full brightness)
  • LED lamp (Aputure LS 600D Pro): ~ 6-8 hours (depending on brightness)

Designed for the professional environment:

The Instagrid MAX ONE is robust and efficient, designed to perform in all conditions thanks to its water and dust resistant system. Increase work flexibility and efficiency with the portable power of the Instagrid MAX ONE. Work safely, quickly, and anywhere with this innovative portable power solution, designed specifically for professionals.

Technical specifications Instagrid ONE Max 400V

Brand: Instagrid
Model: ONE Max 400V

Output voltage: 3-phase 400V
Continuous power: 3,600 W
Peak Power:
150% overload (<500 sec) 5.4 kW (24 A)
200% overload (<50 sec) 7.2 kW (32 A)
250% overload (<10 sec) 9.0 kW (40 A)
Peak power 18.0 kW (80 A)

Battery type: Lithium-ion
Capacity: approx. 2.1 kWh
Output connection: 400V 16A CEE (red)
Charging options: Mains power / external AC/DC charger

Protection: IP54 (dust and splash proof)
Operating temperature: -20°C to +45°C
Weight: 20 kg
Dimensions: approx. 42 x 21 x 42 cm

Noise emission: 0 dB (completely silent)
Warranty: 4 year manufacturer’s warranty
